AIRADAY® Life Air System

All-in-one full fresh air temperature and humidity control system

* 100% Fresh Air * Deep dehumidification * Anhydrous Humidification * Temperature Control System

OVERVIEW
PRODUCTS LINE-UP
DOWNLOADS
ADDITIONAL SERVICES

Keep the Indoor Air Fresh and Comfortable

Optimal Performance. Flexible Design.Optimal Performance. Flexible Design.

The Current Problem - The dehumidification capacity of conventional refrigeration dehumidifier is limited, and fresh air cannot be introduced in the plum rain season and the supply air temperature increases, which increases the energy consumption of air conditioning system.

The Solution - In combination with the above problems, our company adopts the polymer low-temperature regeneration wheel to make full use of condensation heat regeneration, which realizes deep dehumidification and full fresh air without increasing any energy consumption on the basis of traditional freezing, and the supply air temperature can be adjusted to replace air conditioning refrigeration below 30°C/86˚F.

Life Air Device = Dehumidifier + Humidifier + Fresh Air Device + Purifier

Full Fresh Air Temperature & Humidity Control System

The Polymer Low Temperature Regeneration Desiccant Wheel combined with heat pump technology realizes energy saving, high efficiency and dehumidification, creating a comfortable, healthy and fresh indoor climate for human beings.

Heat pump condensation heat regeneration, no electric heating.
100% Fresh Air Supply

Not affected by outdoor weather conditions, the four seasons 100% fresh air, no internal circulation, to provide human health needs of fresh air, no secondary bacteria, virus pollution, improve indoor air quality, to create a comfortable and healthy home environment.
Deep Dehumidification

The organic polymer low temperature regeneration desiccant wheel is used to make full use of condensation heat regeneration, which realizes deep dehumidification without increasing any energy consumption on the basis of traditional cooling.

No need external cold source, energy saving 35%~40%, moisture content in 3~7g/kg, reduce the dew point temperature, no need to worry about the wall condensation.
Anhydrous Humidification

Using the organic polymer low temperature regeneration desiccant wheel high hydrophilicity, humidification without water.
Temp. & Humidity Dual Controls

Latent heat and sensible heat separation, independent control of temperature and humidity, no other equipment, reduce equipment investment.

* Combined with air conditioning for energy saving and comfort.
* The humidity is processed by the polymer low temperature regeneration desiccant wheel, and air conditioning only needs to control the temperature, which improves the comfort.
* Low moisture content of air outlet, shorten the operation cycle;
* Equipment without temperature rise, no need to correct the load loss caused by temperature rise, greatly reducing air conditioning energy consumption.
All Climate Air Conditioning System

Strong dehumidification ability, air outlet moisture content below 7g/kg, 100% full fresh air supply, the use of Japan made of polymer low temperature regeneration desiccant wheel, make full use of condensation heat regeneration, achieve deep dehumidification without increasing any energy consumption on the basis of traditional cooling, full fresh air, air supply temperature can be adjusted, therefore the unit can replace air conditioning at below 30°C (86˚F). That is to say, the all-climate air conditioning operate separately, which can achieve the effect of cooling, fresh air, temperature control and dehumidification.
Low Temperature Regeneration Desiccant Polymer Wheel

* The Low Temperature Regeneration Desiccant Polymer Wheel is Made In Japan.
* The moisture absorption capacity of the polymer wheel is twice of the ordinary wheel
* Low temperature regeneration at 35 to 70℃(95 ~ 158˚F).
* Good durability, ten years performance without attenuation.
* Not adsorb odor molecules and anti-corrosive gases such as acid, alkali and salt
* Resistant to bacteria and mold.

Types of Full Fresh Air Temperature & Humidity Control System

Compare our full lineup at the chart below to find the AIRADAY® Life Air Device that’s right for you.

Withair® Life Air Devices Lineup:

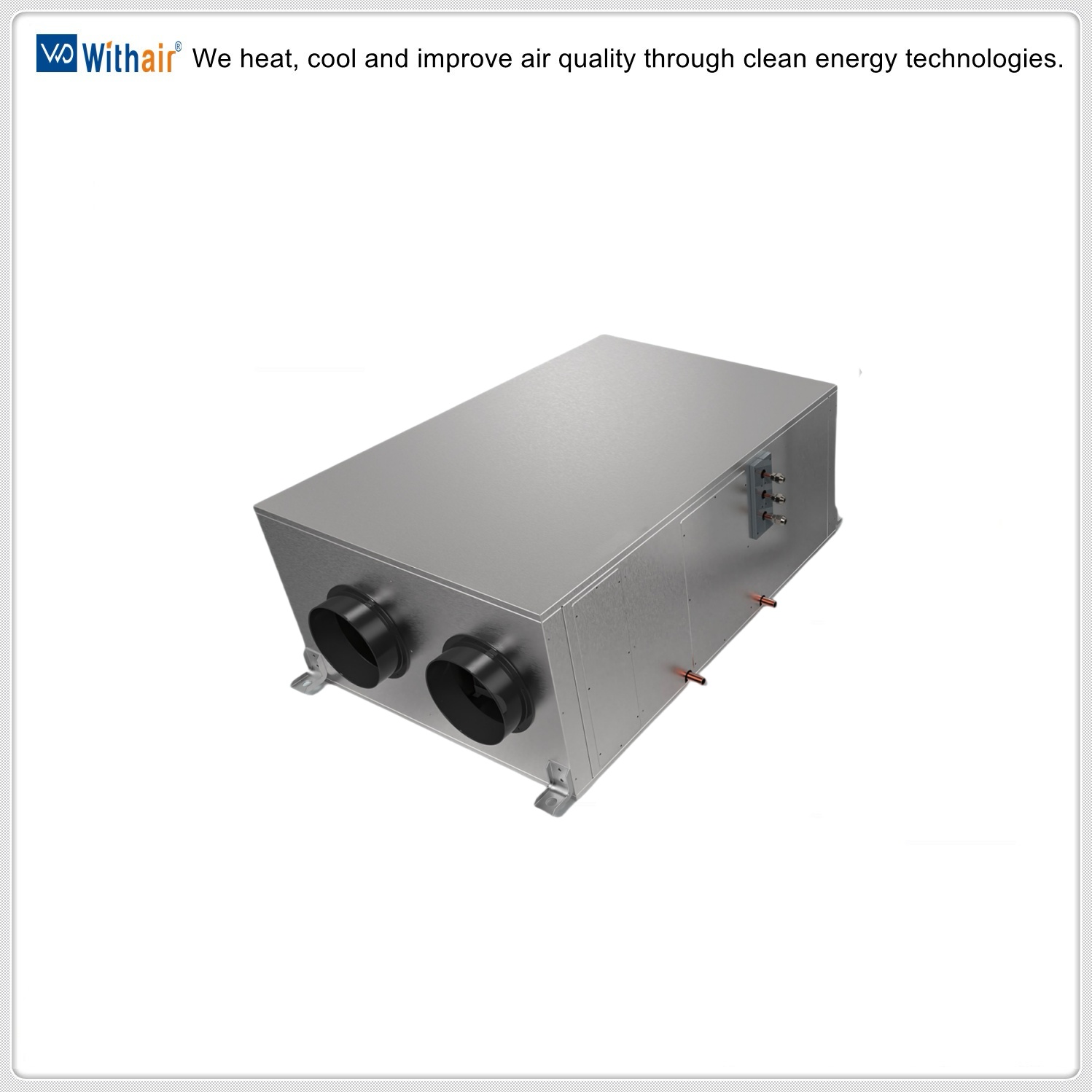

Ceiling Direct Expansion Unit

(Residential Building Use)

At a glance

* Fresh air flow rate: 300 CFM

* Dehumidification capacity: 7.8 kg/h

* Humidification capacity: 1.5 kg/h

* DC Inverter System

* Power Supply: 50 and 60 Hz

* EC Plug Fan

* Ideal Applications: Basement,Offices, Apartments, Hospitality, Healthcare, Education, hotels, apartments, etc.

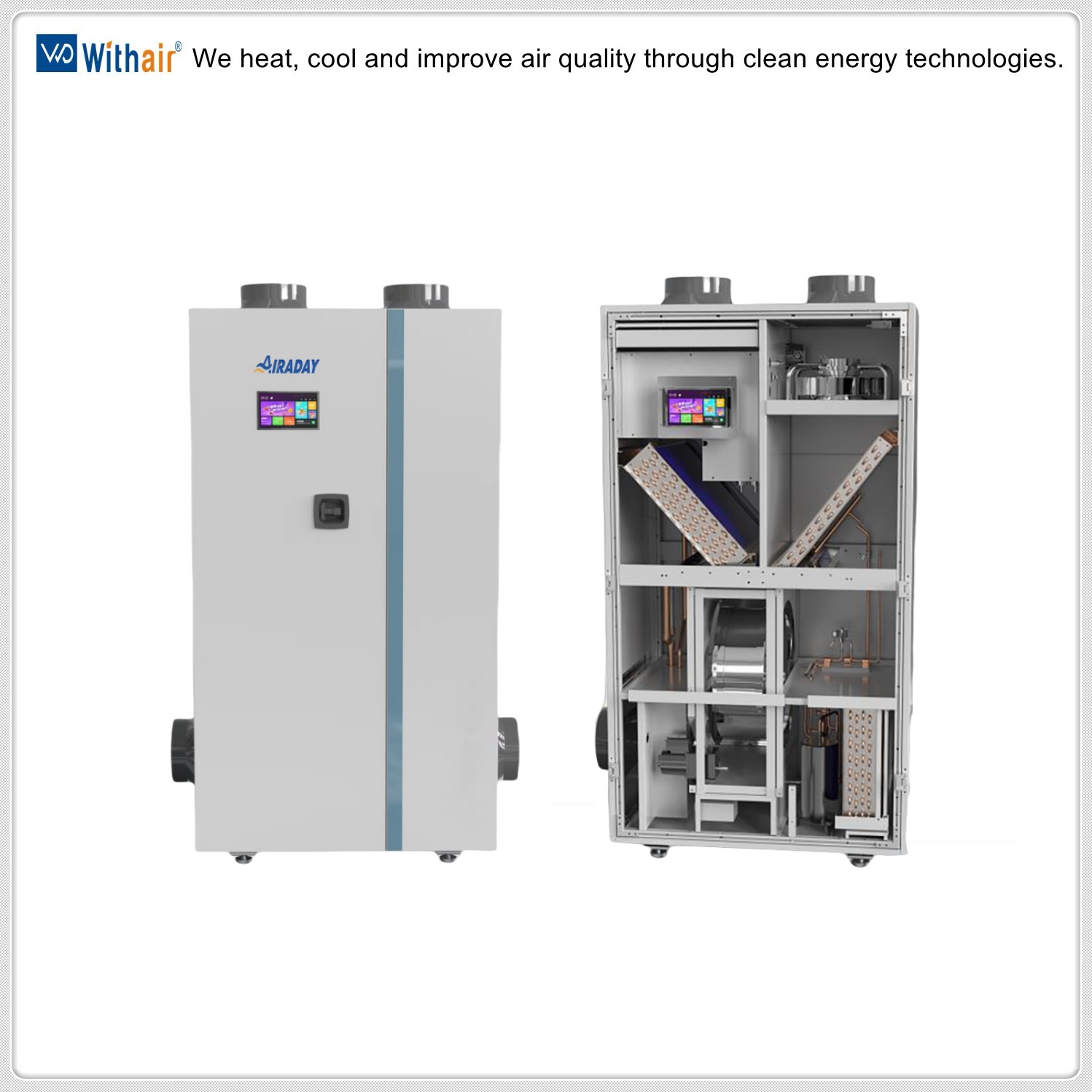

Vertical Direct Expansion Unit

(Residential Building Use)

At a glance

* Fresh air flow rate: 300 CFM

* Dehumidification capacity: 7.8 kg/h

* Humidification capacity: 1.5 kg/h

* DC Inverter System

* Power Supply: 50 and 60 Hz

* EC Plug Fan

* Ideal Applications: Basement,Offices, Apartments, Hospitality, Healthcare, Education, hotels, apartments, etc.

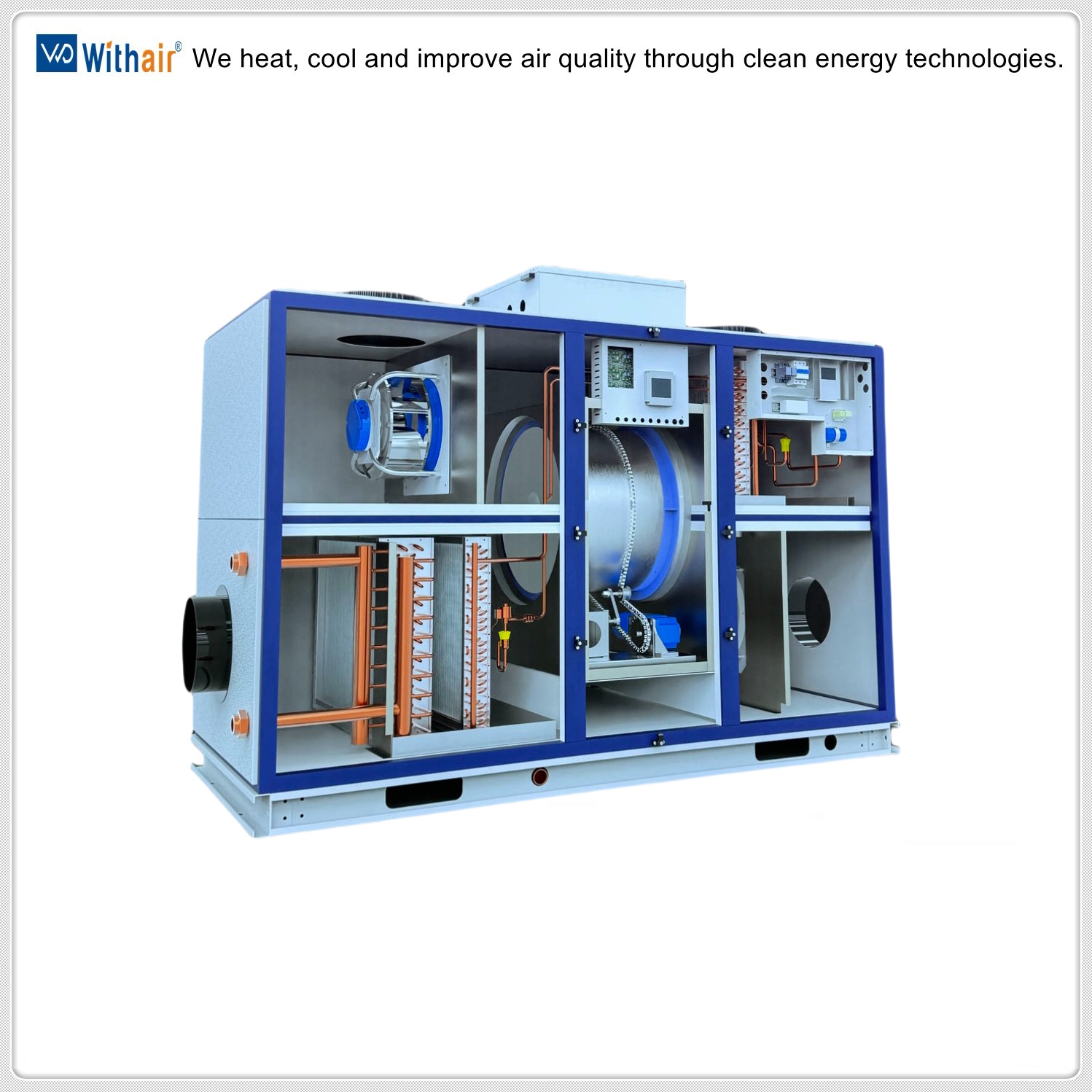

Floor/Vertical Chilled Water Unit
(Commercial & Industrial Use)

At a glance

* Fresh air flow rate: 400 ~ 2,000 CFM

* Dehumidification capacity: 280 ~ 890 L/D

* Humidification capacity: 55 ~ 180 L/D

* DC Inverter System

* Power Supply: 50 and 60 Hz

* ECM Fan

* Ideal Applications: Shopping Mall, Hospitality, Healthcare, Hotels, Industrial & Process, etc.

Still not sure which system is right for you?

Contact Withair® Senior Sales Engineer
